Automatic tube making machine of a new generation

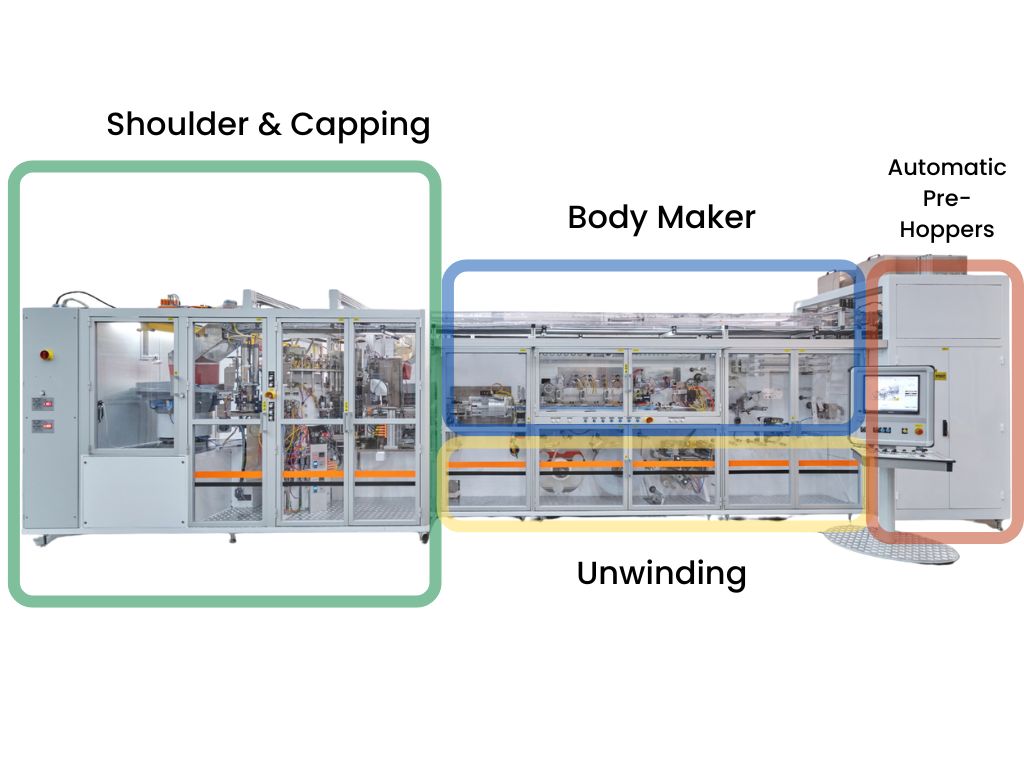

Front View
Production Cycle
Following the current trends of automation and data exchange in manufacturing
Up to 130 tubes per minute
Significantly high production rate of laminated ABL and PBL tubes.
Industry 4.0 and Internet of Things
Main advantages of KOMBIS FT1300 are the computerization, promoted in Industry 4.0 and the cyber-physical systems. Thanks to the modern technology used, the machine can be monitored and adjusted remotely.
Modular principle
KOMBIS FT1300 combines three modules in one frame. The design of the machine allows for quick and easy change of tooling.
Higher reliability and machine safety
Special attention is paid when using
energy efficient components in order to save energy during production.
We always look up to the new trends in automation
It is important for us to keep up with innovative technology in order to build unique high performance packaging lines.
Function Principle
The FT-1300 Line is designed to make ready-made tubes. It is made up of specialized units for
specific operations along the production line. Connection between inputs and outputs is achieved
by conveyors and grippers that move laminate, caps and shoulders into the machine and finished
tubes out of the machine.
The Line works with pre-printed laminate. Packaging design must meet the technical requirements for this type of production.
Finished products are cylindrical or oval tube bodies with shoulders and caps. Collection and packaging of completed tubes is carried out by the customer.
The Line works with pre-printed laminate. Packaging design must meet the technical requirements for this type of production.
Finished products are cylindrical or oval tube bodies with shoulders and caps. Collection and packaging of completed tubes is carried out by the customer.
Technical data
Maximum speed
PBL: 130 tpm
ABL: 130 tpm
ABL: 130 tpm
Consumables
Foil type: ABL or PBL
ABL: 0.175 to 0.330 mm
PBL: 0.220 to 0.380 mm
Tube sizes
Diameter: 16 - 50 mm
Length: 90 - 200 mm
Length: 90 - 200 mm
Operating mode
Automatic
