FORM, FILL
and SEAL
Our FFS machines form the packaging body, fill it with product, and seal it. The flexibility of our technology allows work with ABL and PBL foils.
Tube shape
Elliptical and Cylindrical
Foil type
ABL or PBL
Membrane sealing
(optional)

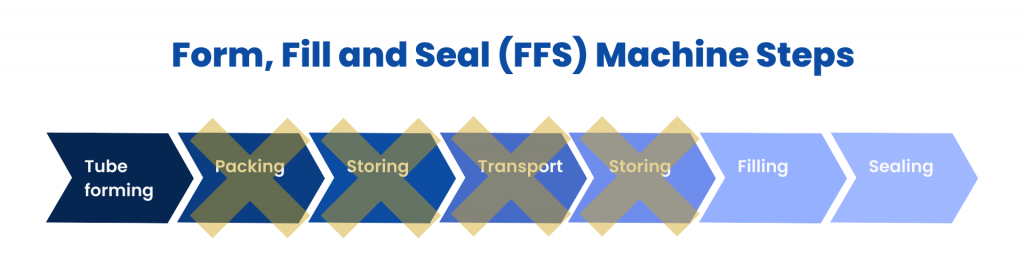

Process Efficient
Eliminates unnecessary stages -
no need for packing, storing and transporting.Laminate in-feed
ABL or PBL foil is being fed to the body maker.
Side Seaming
High-frequency welding for ABL foil
Hot air welding for PBL foil
Hot air welding for PBL foil
Sleeve Cutting
Flying rotary knife cutter.
Shoulder Welding
Welding technology for ABL - a combination of hot air and high-frequency.
For PBL - hot air welding.
For PBL - hot air welding.
Membrane sealing (optional)
Membrane punching and sealing of the aluminum-based foil in one step with high-frequency.
Capping
Cap screw-on station exchangable with a cap press-on station for oriented caps (accuracy +/- 2.5°).
Tightening Station
The cap tightening station applies the proper torque.
Tube Transfer
A key point in the FFS process is the tube transfer from the tube maker to the tube filler.
We have found a simpler solution for this stage which excludes any mechanical manipulation. In our case the tubes are directly blown to the filler.
We have found a simpler solution for this stage which excludes any mechanical manipulation. In our case the tubes are directly blown to the filler.
Filling Unit
New filling head with servo pushing.
Easy assembling/disassembling.
Completely made from steel 316L.
Easy assembling/disassembling.
Completely made from steel 316L.
Operations
Overview
