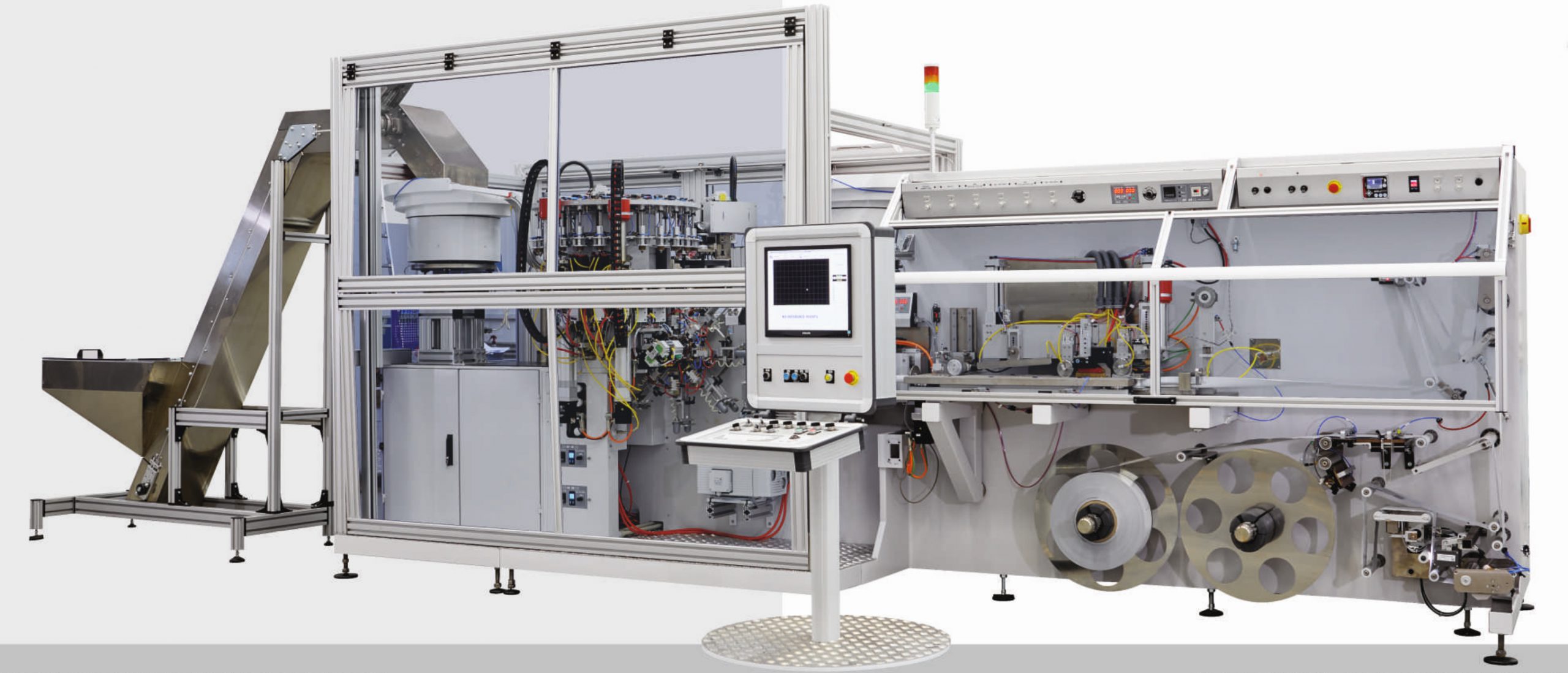

KOMBIS FT1500

Innovation and quality combined




Automatic tube making machine of a new generation




Following the current trends of automation and data exchange in manufacturing

150 tubes per minute


Significantly high production rate of laminated ABL or PBL tubes.

Industry 4.0 and Internet of Things


Main advantages of KOMBIS FT1500 are the computerization, promoted in Industry 4.0, and the cyber-physical systems. Thanks to the modern technology used, the machine can be diagnosed and adjusted remotely.

Modular principle


KOMBIS FT1500 combines three modules in one frame. The design pf the machine allows for quick and easy change of tooling.

Higher reliability and machine safety


Special attention is paid in using energy efficient components in order to save energy during production.

We always look up to the new trends in automation


It is important for us to keep up with innovative technology in order to build unique high performance packaging lines.

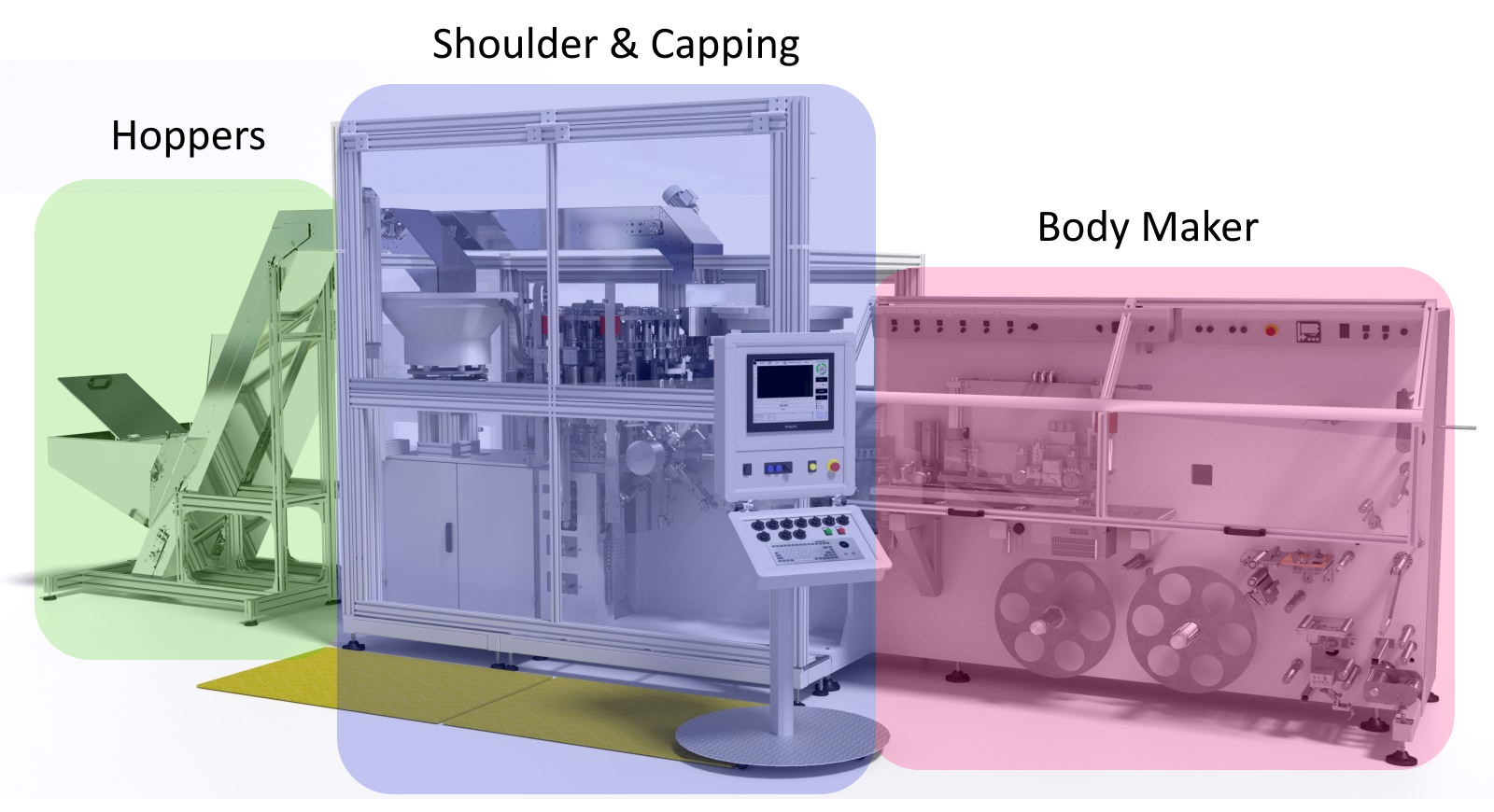

Function Principle


The FT-1500 Line is designed to make ready-made tubes. It is made up of specialized units for specific operations along the production line. Connection between inputs and outputs is achieved by conveyors and grippers that move laminate, caps and shoulders into the machine and finished tubes out of the machine.
The Line works with pre-printed laminate. Packaging design must meet the technical requirements for this type packaging.
Finished products are cylindrical or oval tube bodies with shoulders and caps. Collection and packaging of completed tubes is carried out by the customer.
The machine operates fully automatically.

Technical data

Machine dimensions
Length: 5450 mm
Width: 3245 mm
Height: 2880 mm
Tube sizes
Diameter: Ø16 ÷ Ø50 mm [0,75-1,97in]
Length: 90 ÷ 200 mm [3,15-7,87in]
Nominal productivity
PBL foil: 130 tubes per minute
ABL foil: 150 tubes per minute
Operating mode
Automatic
Consumables
Type of the foil: ABL and PBL
Thickness of the barrier layer: 0,012 to 0,04 mm
Total thickness (for ABL): 0,175 to 0,330 mm
Total thickness (for PBL): 0.300 to 0.400 mm
Seal Orientation: longitudinal
