Suitable for thin materials

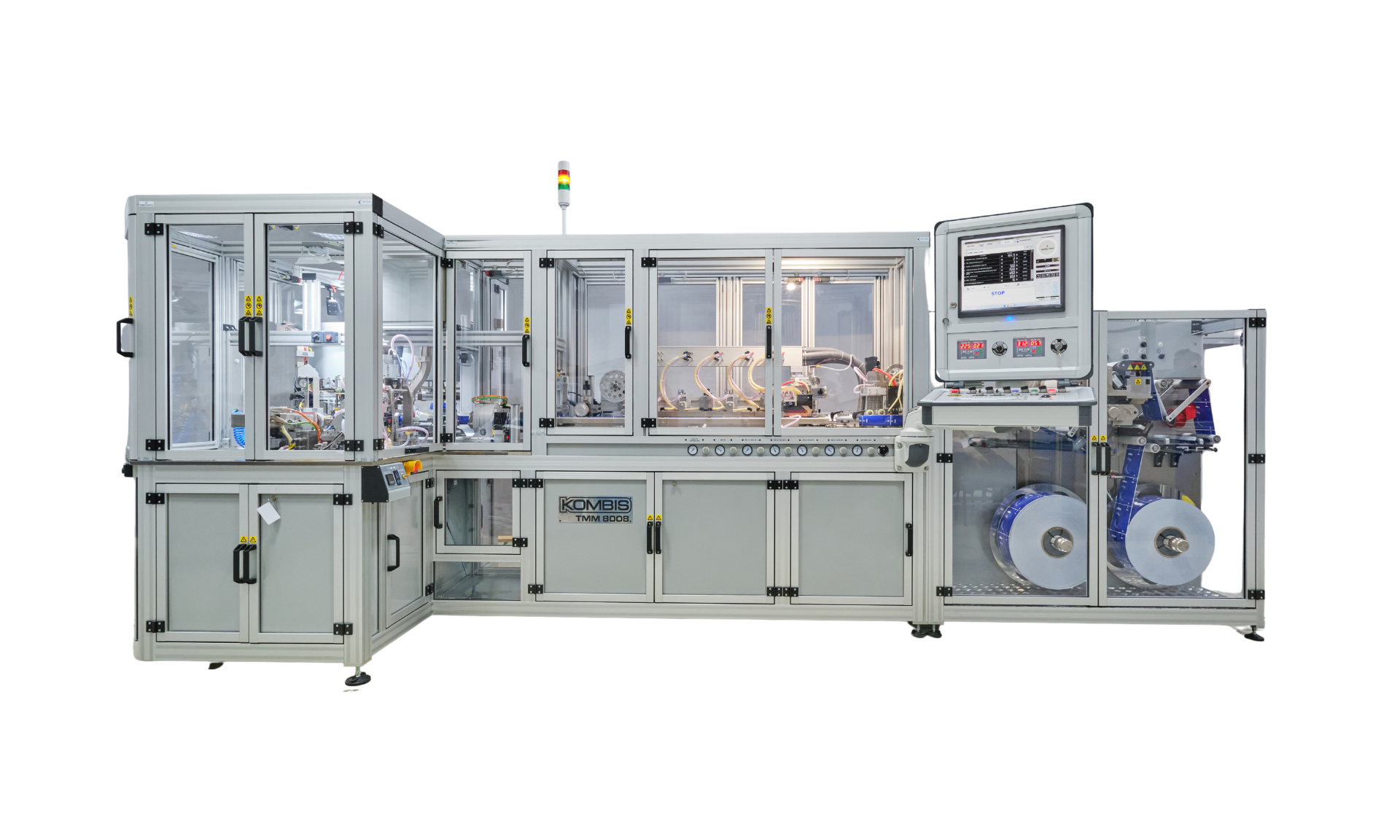

Front View

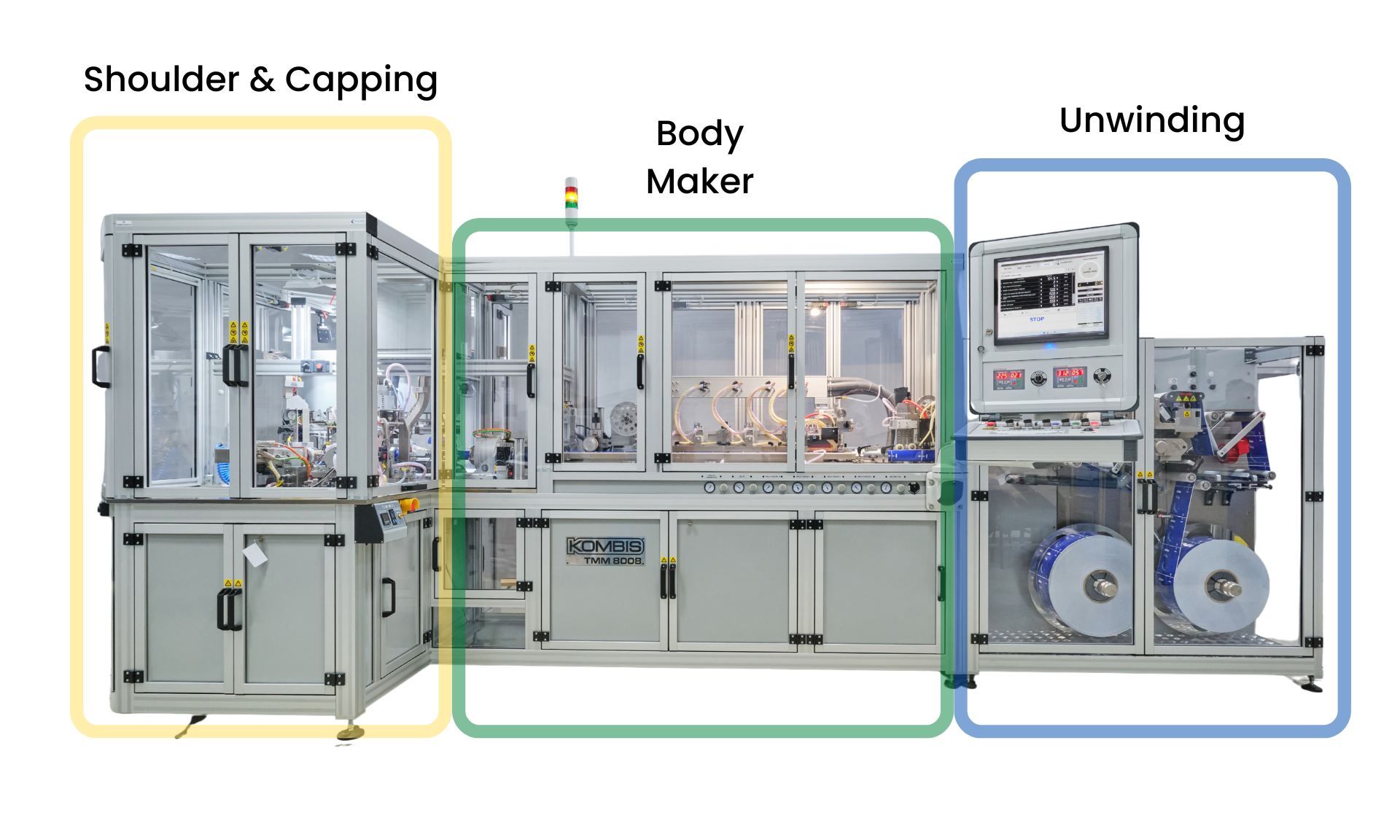

Production Cycle
Automatic Laminate Tube Making Machine
Easy adjustment and maintenance
The modular construction of the line allows for easy adjustment and maintenance over time.
Adaptability
The adaptability of KOMBIS TMM8008 makes it preferable for the production of comparatively small series of tubes where change of adjustment is frequently required.
Functionality
The function of KOMBIS TMM8008 is based on the principle of welding the cylindrical body of the tube to a pre-moulded shoulder and then adding the cap at a push-on or thightening station.
Flexibility
The tooling equimpment of the automatic line could be changed at the user's wish (diameter of the tubes, type of caps, etc.).
A number of optional modules:
Top seal
Pre-hoppers for automatic loading of caps and shoulders
Tube Boxing Machine (TBM)
Technical data
Maximum speed
85 tpm
Consumables
Foil type: ABL or PBL
ABL: 0.175 to 0.330 mm
PBL: 0.220 to 0.380 mm
ABL: 0.175 to 0.330 mm
PBL: 0.220 to 0.380 mm
Tube size
TUBE DIAMETER: Ø 16 – Ø 50 mm
TUBE LENGTH: 80 - 200 mm
TUBE LENGTH: 80 - 200 mm
Operating mode
Fully automatic
